Overview:

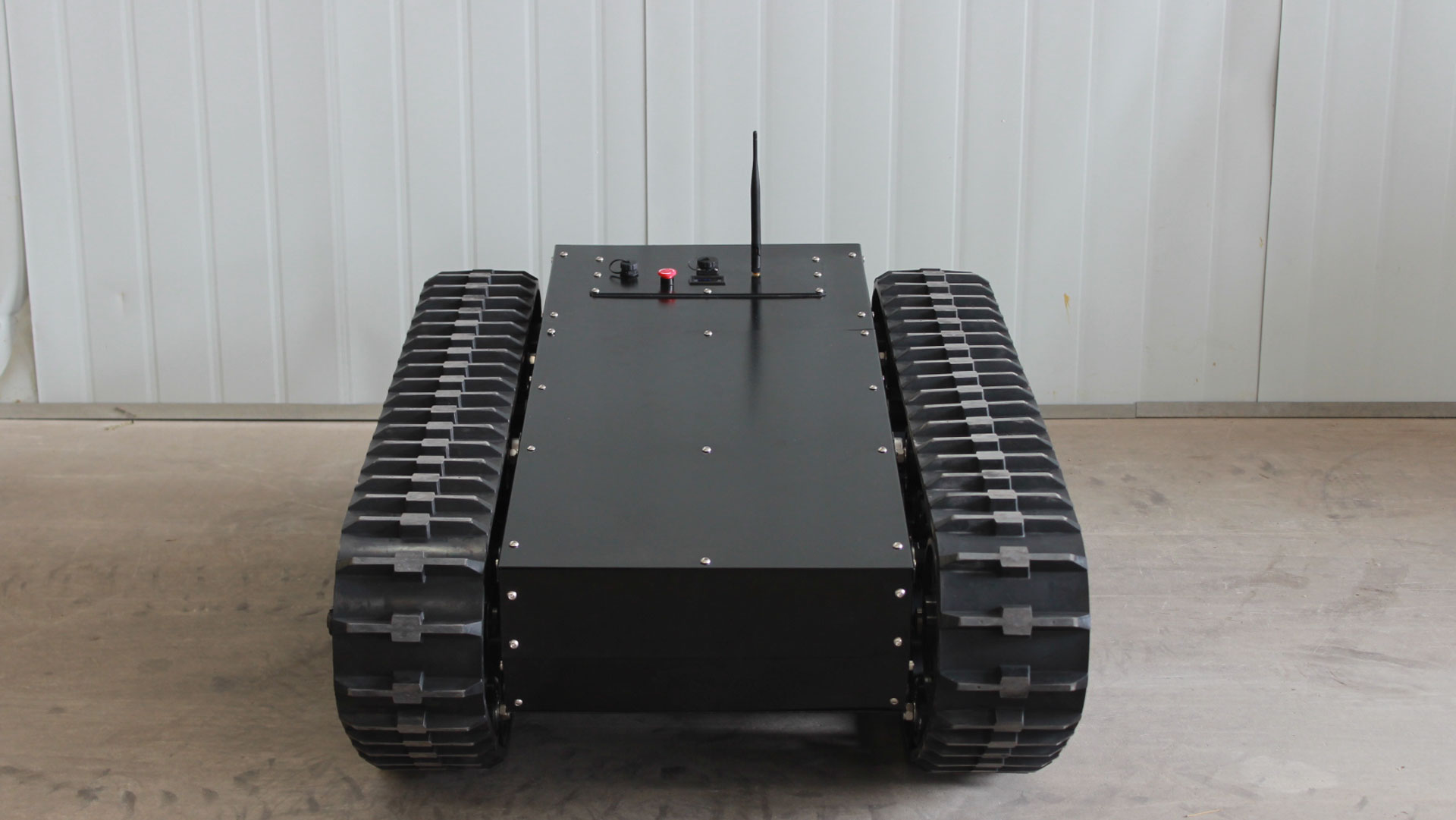

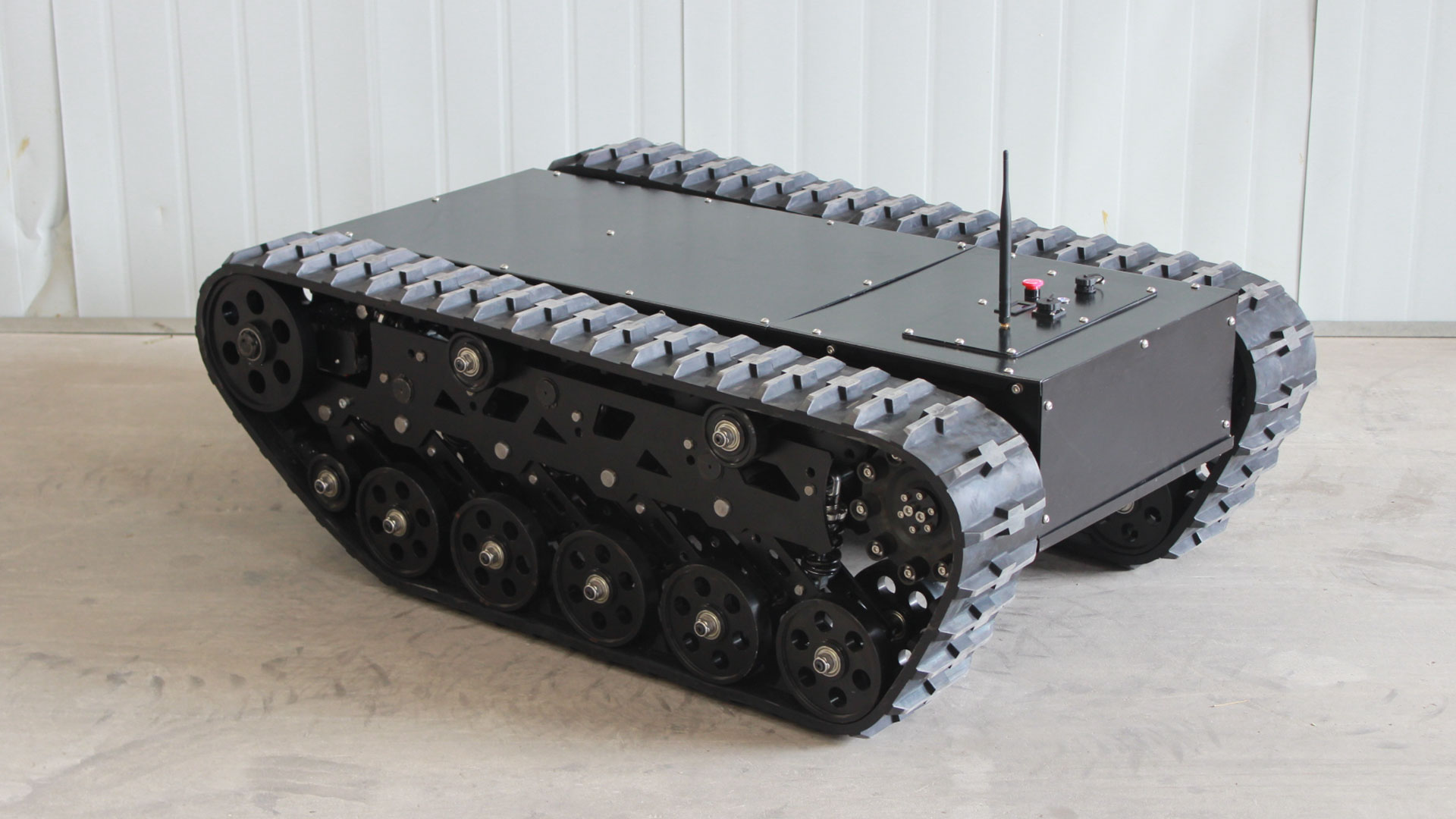

Featured large space for development and more table travel, the product is a universal crawler robot chassis with independent Christie suspension, which can help reduce vibration at the time of heavy load. Its interior is equipped with high torgue brushless DC gear motor, making the chassis strong and powerful to surmount any obstacles along its way.The accurate height of chassis, combined with motors of appropriate power, which give it many advantages including low gravitational center, outstanding obstacle-surmounting properties, vibration reduction for heavy load and stable operation. That’s why it can be applied to many complex robot movement solutions.
Product Character:
Equipped with 880W brushless DC motor and reduction gear,the chassis is higher than 185mm, be able to across any obstacles with heavy load, climbing stairs.
Small turning radius help realize pivot steering.

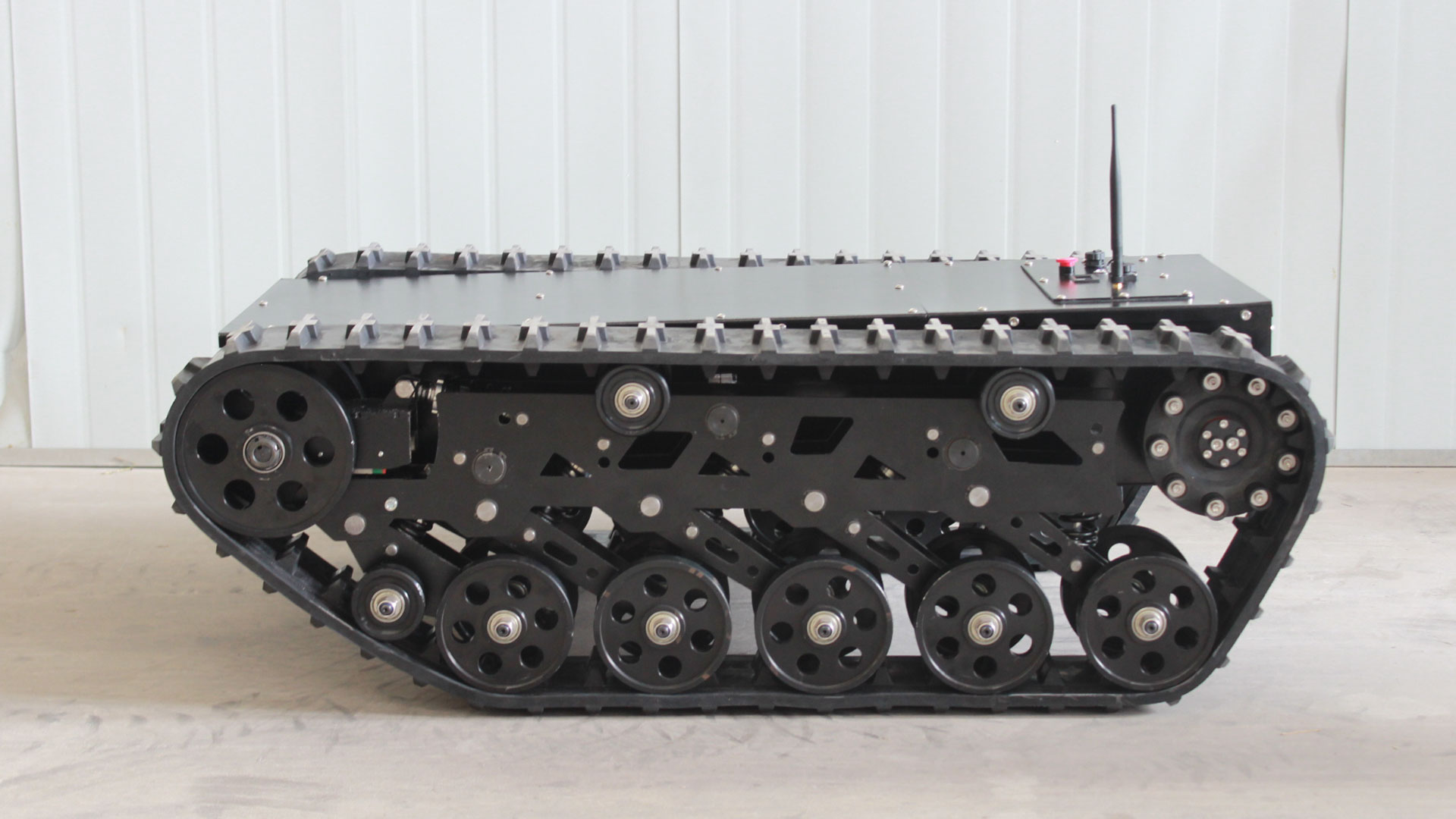

Track grousers on the crawler belt are non-slipping, excellent traction and adhesion capacity, independent suspension design enable the chassis to travel more stable.
Large interior space ，could load more equipment.
Strong universality allows to development and customized of non-standard products.
Main function:
Excellent is vibration reduction for heavy load, climbing slope, stairs; More space development could be widely developed for various applied field.
Function Development
Be widely applied for patrol exploration、special camera etc ，special equipment which have more stable performance requirements.
Specifications:
| Item | Specification | |
|---|---|---|
| Motor Power | 48V brushless DC motor | |
| Working temperature | -20℃~60℃ | |
| suspension system | Christie suspension | |
| rate power | 880W*2 | |
| rate torque | 82NM | |
| Operating Velocity | 0~1.6m/s | |
| Max obstacle-surmounting | 160mm | |
| Max angle of climbing | 35 degree ( climbing stairs) | |
| vibration reduction | *10 independent vibration absorbers on both sides | |
| remote control distance | plain 300M | |
| working capacity | 2h | |
| remote control function | right-hand rocker control the body movement | |
| dimension | appearance dimension | 1215*820*440mm |
| interior dimension | 1050*375*150mm | |
| chassis height | 185mm | |
| track width | 150mm | |
| grounding length | 760mm | |
| weight | self weight | 165kg |
| loading weight | 80kg | |
| material | wheel | aluminuium |
| body material | carbon steel | |
| tracked material | quality rubber emmbedded with Kevlar fiber | |
| surface treatment | spray plastic/ partial spray painting | |
| battery | grade | lithium battery |
| capacity | 30AH | |
| voltage | 48V | |
